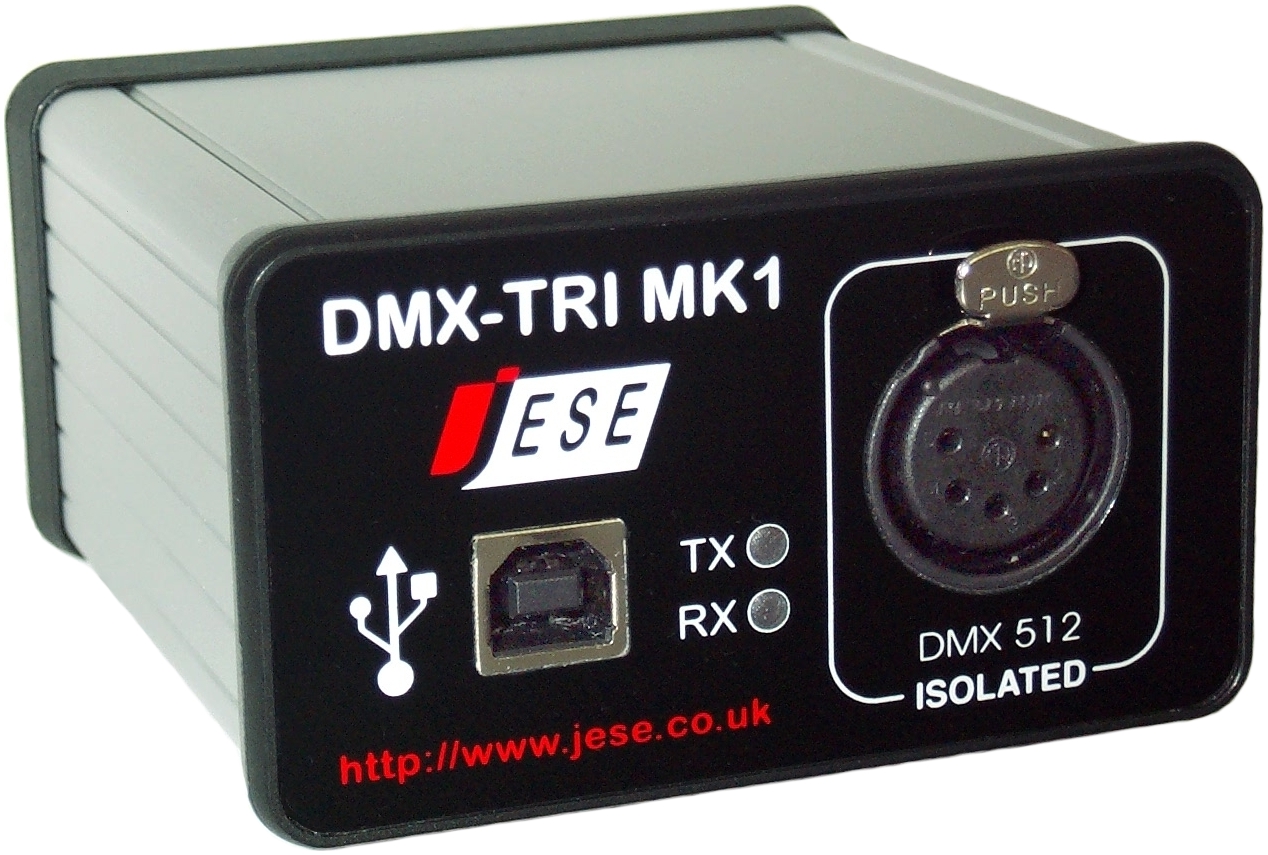

DMX-TRI
The intelligent PC interface for DMX 512 Applications
- Feature Packed -
- DMX Frame Generator
- DMX Frame Receiver
- 120 Ohm Termination
- DMX Socket 1kV Isolated
- Configurable Parameters
1 to 40 Frames/second
Frame Break Time (BRK)
Mark After Break (MAB) - Triple Frame Buffers
- TX & RX Indicators
- Audio Error Indicator
- Two Command Sets
- RDM Protocol Aware
- Robust Firmware Upgrade
- Published Interface Spec
USB - DMX512 INTERFACE
Click on image to view
May be licensed for GetSet RDM Controller
- Utilities and Drivers -
Probo is a free Windows Application, included with the companion CD.
TRI Probo Includes:
- Patchable Control Desk
- DMX Input Monitor
- DMX Output Configuration
- Firmware Upgrade Tool
- Licence Upgrade Tool
- Choice of connection -
Although the 5 Pin XLR is the standard DMX connector, the majority of popular DMX products in existence
use a 3 Pin XLR.
The DMX-TRI is available with the standard 5 Pin DMX Connector or the popular 3 Pin XLR.
PROBABLY THE MOST FLEXIBLE USB DMX CONTROLLER AVAILABLE
COMPATIBLE WITH MOST CONTROL APPLICATIONS AND NEW STANDARDS
FUTURE-PROOF DESIGN, READY FOR UPGRADE TO RDM CONTROLLER
COMPATIBLE WITH MOST CONTROL APPLICATIONS AND NEW STANDARDS
FUTURE-PROOF DESIGN, READY FOR UPGRADE TO RDM CONTROLLER
DMX512
- Transmitter -
The TRI will generate DMX Universe frames asynchronously at rates configurable between 1 to 40 frames a second.
Options are available to update the entire frame at once, a single slot within the frame or to insert a single
frame into the transmission sequence.
- Receiver -
The TRI provides synchronous and asynchronous modes for monitoring DMX Frames, giving the application the
flexibility to react only when frame data changes.
RDM ANSI E1.20
- Upgrade Path -
The DMX-TRI can be licensed to be fully operable with GetSet, a Windows RDM Control Application. The upgrade path
assures your hardware of a long and adaptable future, making it a sound investment.
