• RDM Protocol Aware
• On Board Discovery
• RDM Idle State Bias
• RDM Error Management
• DMX Input & Output
• 120 Ohm Termination
• DMX Socket 1kV Isolated
• Configurable Parameters
  1 to 40 Frames/second
  Frame Break Time (BRK)
  Mark After Break (MAB)
• Triple Frame Buffers
• TX & RX Indicators
• Audio Error Indicator
• Two Command Sets
• Robust Firmware Upgrade
• Published Interface Spec

Click on image to view

• RDM Controller Windows Application.
• Bundled with RDM-TRI as Package.
• Graphical interface for Intuitive control.
• Utilises protocol engine facilities
  on board the RDM-TRI.

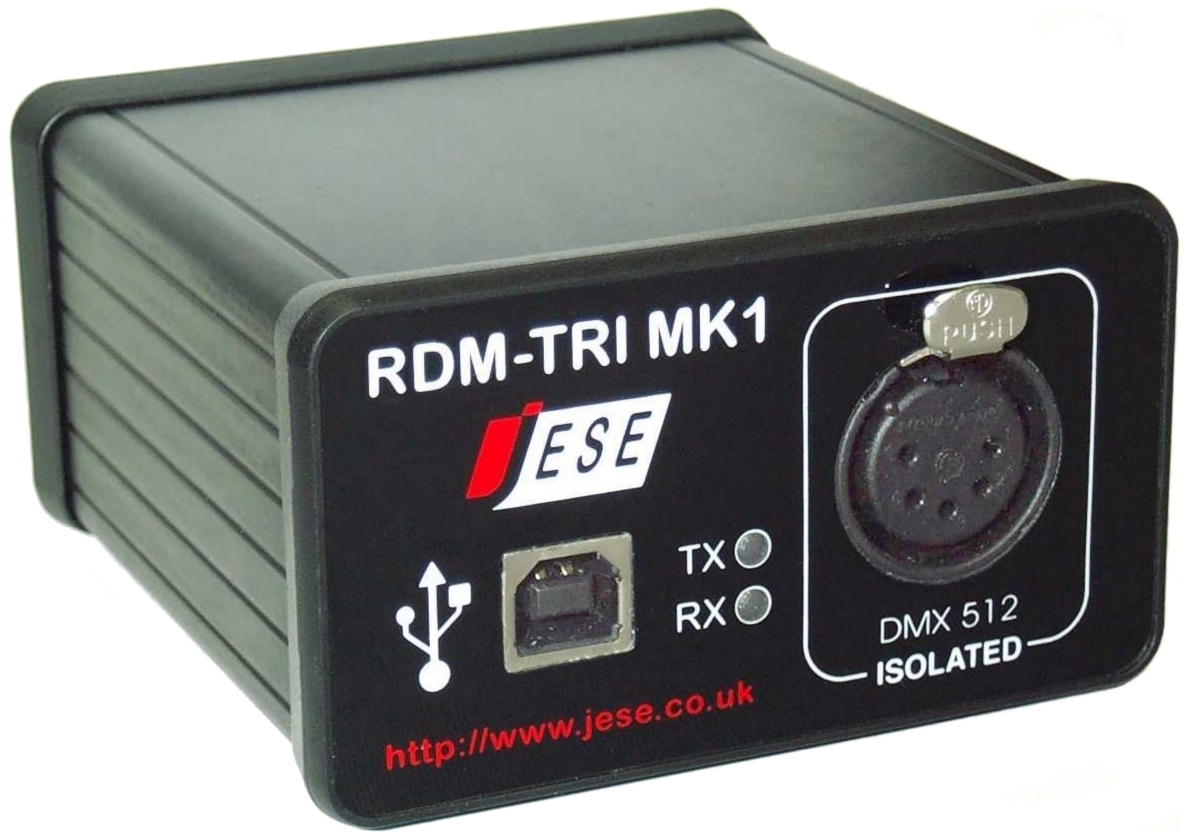

The package comprises RDM-TRI, a USB RDM controller and GetSet, a Windows application.

The solution makes the world of RDM accessible to all, enabling remote configuration and interrogation of RDM compliant equipment. Kit also includes USB cable to connect to PC.

DMX512

The TRI will generate DMX Universe frames asynchronously at rates configurable between 1 to 40 frames a second. Options are available to update the entire frame at once, a single slot within the frame or to insert a single frame into the transmission sequence.

The TRI provides synchronous and asynchronous modes for monitoring DMX Frames, giving the application the flexibility to react only when frame data changes.

RDM ANSI E1.20

Full RDM versions of the TRI comes into their own, when a simple to manage interface with the world of RDM is required. The RDM protocol handling and checking is taken care of in real time, leaving the host application free to make simple requests and issue instructions to all compliant devices.
The TRI has an onboard discovery routine which, when instructed, discovers all compliant devices and compiles a list for the host application to query.
