DMX-TRI MK1 (SE)

Data Sheet

DMX-TRI (SE)

The intelligent PC interface for DMX 512 Applications

Now in Second Edition with faster processor.

- Feature Packed -

DMX Frame Generator
DMX Frame Receiver
120 Ohm Termination
DMX Socket 1kV Isolated
Configurable Parameters
1 to 40 Frames/second
Frame Break Time (BRK)
Mark After Break (MAB)
Triple Frame Buffers
TX & RX Indicators
Audio Error Indicator
Two Command Sets
RDM Protocol Aware
Robust Firmware Upgrade
Published Interface Spec

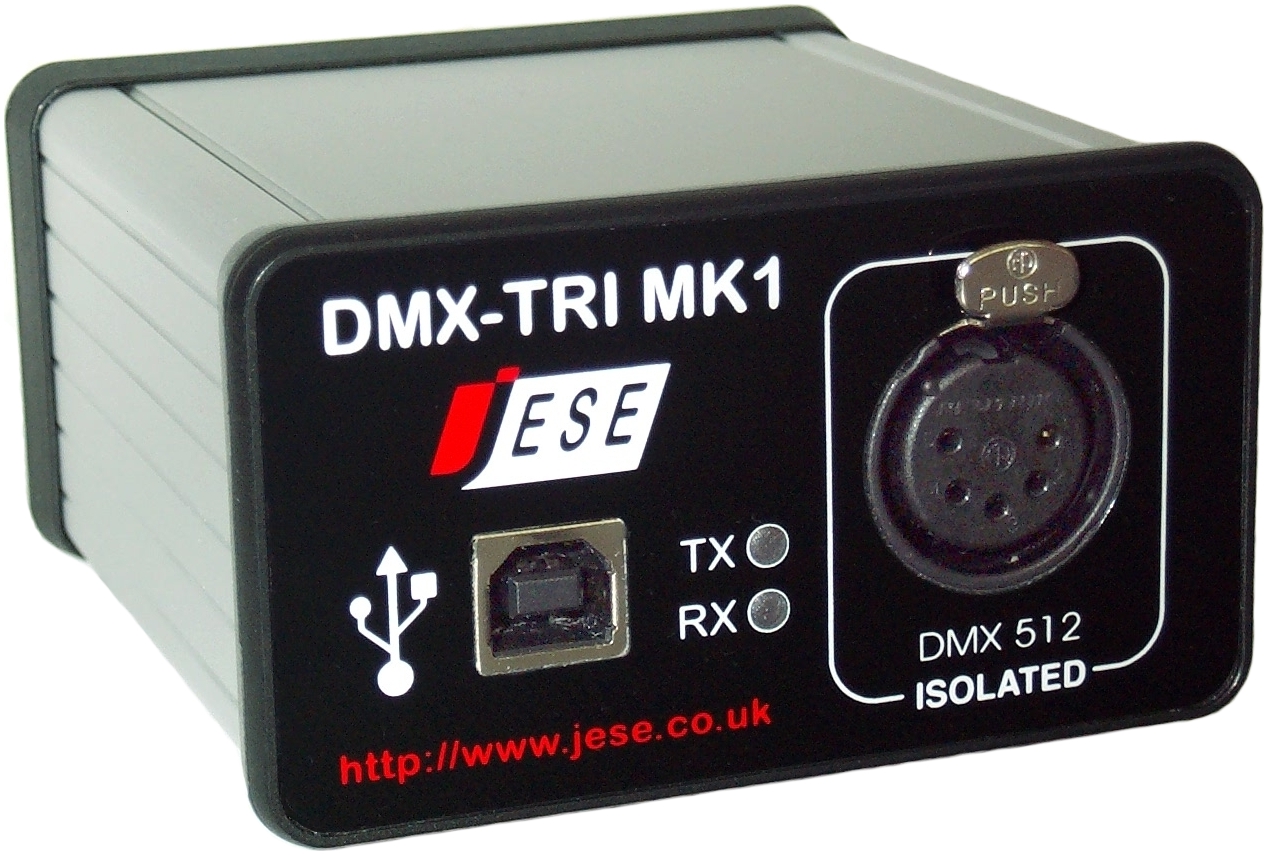

USB - DMX512 INTERFACE

Click on image to view

May be licensed for GetSet RDM Controller

- Utilities and Drivers -

Probo is a free Windows Application, included with the companion CD.

TRI Probo Includes:

Patchable Control Desk
DMX Input Monitor
DMX Output Configuration
Firmware Upgrade Tool
Licence Upgrade Tool

- Choice of connection -

Although the 5 Pin XLR is the standard DMX connector, the majority of popular DMX products in existence use a 3 Pin XLR.

The DMX-TRI is available with the standard 5 Pin DMX Connector or the popular 3 Pin XLR.

DMX
Lighting
Software

Light Factory

Show Magic

Open Lighting

DMX512

- Transmitter -

The TRI will generate DMX Universe frames asynchronously at rates configurable between 1 to 40 frames a second. Options are available to update the entire frame at once, a single slot within the frame or to insert a single frame into the transmission sequence.

- Receiver -

The TRI provides synchronous and asynchronous modes for monitoring DMX Frames, giving the application the flexibility to react only when frame data changes.

RDM ANSI E1.20

- Upgrade Path -

The DMX-TRI can be licensed to be fully operable with GetSet, a Windows RDM Control Application. The upgrade path assures your hardware of a long and adaptable future, making it a sound investment.
