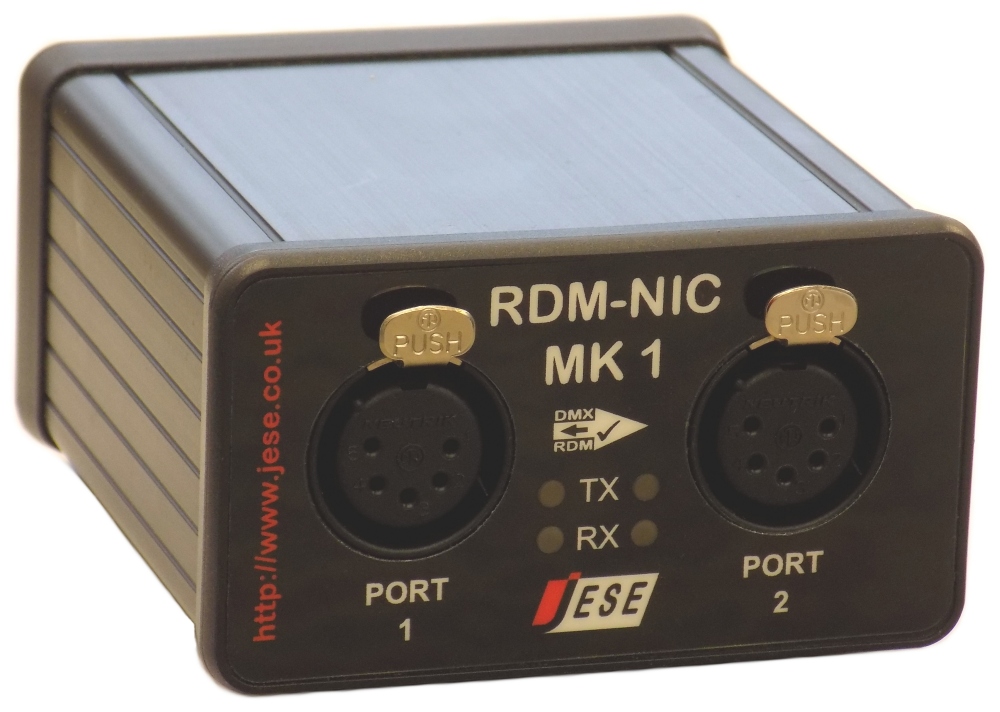

RDM-NIC MK1

The optimal way to add DMX and RDM over networks.

- Full Featured -

RDM Protocol Aware
Two Universes of DMX control
RDM Idle State Bias on command ports
Full DMX and RDM Interleave
Triple Input Frame Buffering
On Board Discovery Engine
RDM Error Management
Configurable Output Parameters
1 to 40 Frames/second
Frame Break Time (BRK)
Mark After Break (MAB)
TX & RX Indicators
Audio Error Indicator
Powered from DC Adaptor
Robust Firmware Upgrade
Lifetime Firmware Updates
Supports DHPC or Static Addressing
Published Network Interface Protocl

Suitable for DMX512 and RDM

Click on image to view

Ethernet to DMX Out + RDM

RDM Controller Software

RDM Controller Windows Application.
Graphical interface for Intuitive control.
Utilises protocol engine facilities
on board the RDM-NIC.
Includes 1 year of free upgrades
Available with as Package or Separately

- Controller Package -

The RDM-NIC is available on its own or as a Package, bundled with GetSet MV, a Windows RDM Controller Utility. Licenses to use the controller with GetSet MV may also be purchased separately.

The controller is an ideal solution for a networked installation, providing access to new RDM enabled fixtures whilst supporting precise multi-universe DMX control.

DMX512

- Transmitter -

The Controller will generate DMX Universe frames asynchronously at rates configurable between 1 to 40 frames a second. Options are available to update the entire frame at once, a single slot within the frame or to insert a single frame into the transmission sequence.

- Ethernet -

The NIC provides supports an easy to impliment Network Control Protocol (JESE-NCP). For optimal integration in to networks, controllers are DHCP operable by default and configurable for Static Addressing. A factory reset button facilitates re-configuration if required.

RDM ANSI E1.20

- Controller -

The RDM Network Interface Controllers and Nodes, comes into their own, when a simple to manage interface with the world of RDM is required. The RDM protocol handling and checking is taken care of in real time, leaving the host application free to make simple requests and issue instructions to all compliant responders.

The NIC has an onboard discovery routine which, when instructed, discovers all compliant responders on two Universes and compiles a table for the host application to query.
