RDM-RC6

DMX & RDM 6 Way Relay

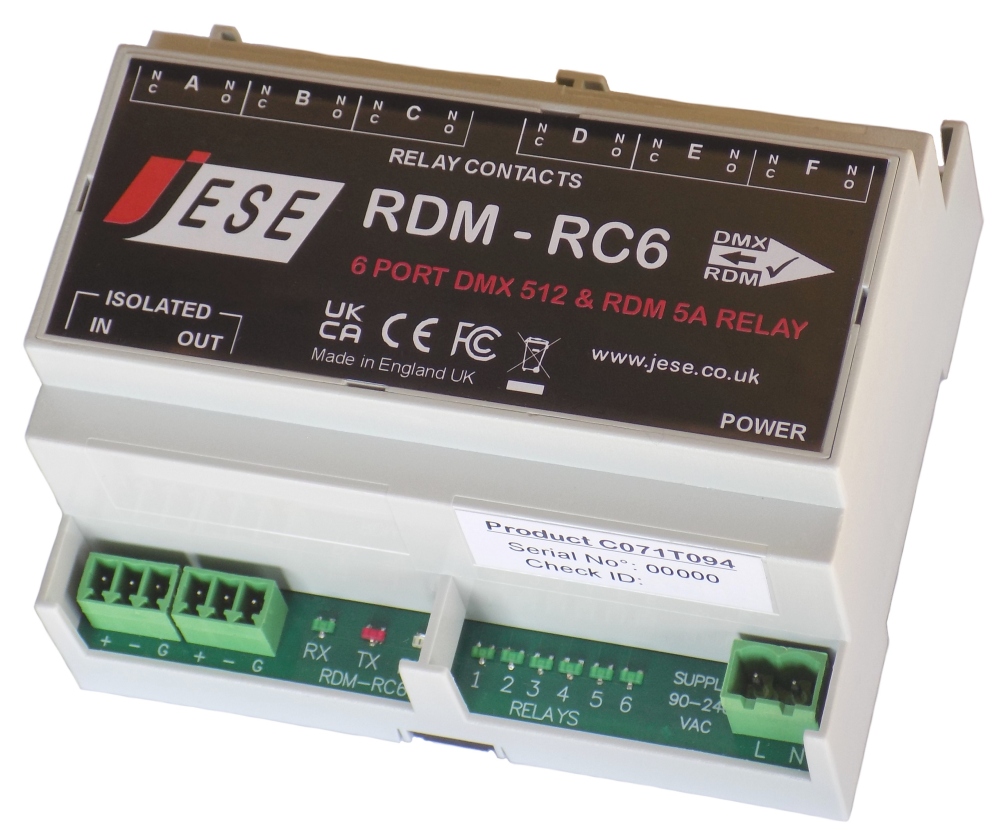

6 x SPDT Pole 5A 240V DIN Rail Relay with RDM configurable operation.

- Features -

Switching
The RC6 provides 6 Change Over Contacts. Each relay contact is rated for 5A continuous operation. The DMX-RDM connection follows recommended E1.11 receiver topology, providing better than 1KV isolation. The unit is well suited to switching high current equipment in and out of standby operation.
DMX Control and Fail Modes
The relays have many configurable settings for control by DMX threshold ranges and state change delays to make them highly tolerant to erroneous DMX packets. The behaviour on DMX fail may also be configured to maintain state or fail safe.
RDM Operable Device
The DMX address of the relay is configured with any compliant RDM controller. The relay is fully RDM configurable for the desired operation, providing the option of changing configuration remotely according to requirement. DEVICE_POWER_CYCLES and DEVICE_HOURS are also supported by RDM.

Suitable for DMX512 & RDM
Power Switching

Click on image to view.

A complete set of pluggable rising-clamp connectors is included with each unit.

- Tech Spec -

Mounting
DIN Rail4U (EN50022)
Power Supply
90V-240V, 50-60Hz
5W (Nominal)
Indication
Forward, Reverse
Status & Contacts
Dimensions
94mm x 102mm x 58mm
Weight
220g
Environment
0°C to 50°C, 5% to 90% RH
Standards
ANSI E1.11 - 2008(R2024) DMX512A
ANSI E1.20-2010 RDM over DMX512 networks
Materials
ROSH, WEEE
Compliance
UKCA, CE, FCC

Feature Addition Flexibility
As with all JESE responder products, the RC6 supports Firmware Upload over RDM for field updates. In the case that additional perfomance or behavioural features should be required, such features may be included in a release of Firmware and applied at base or in the field with a suitable RDM controller.
