JESE USB to DMX512

Documents

USB-DMX (SE)

The intelligent PC interface ShowCad Artist

Now in Second Edition with faster processor.

- Feature Packed -

DMX Frame Generator
120 Ohm Termination
DMX Socket 1kV Isolated
Configurable Parameters
1 to 40 Frames/second
Frame Break Time (BRK)
Mark After Break (MAB)
Triple Frame Buffers
TX & RX Indicators
Audio Error Indicator
Two Command Sets
Robust Firmware Upgrade
Published Interface Spec

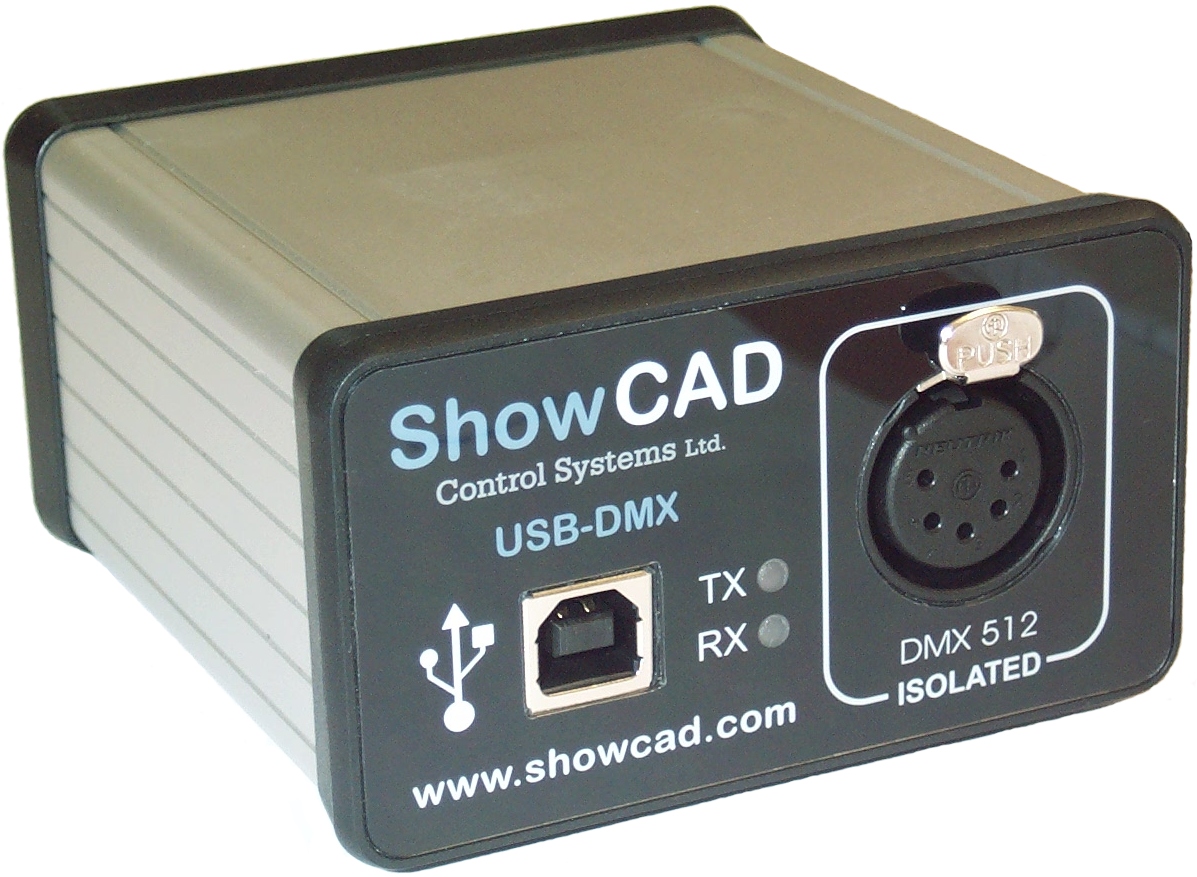

Click on image to view

USB - DMX512 INTERFACE

- Show Contol Software -

Web Site

ShowCad Atrists is available for purchase and download from the ShowCad Web Site.

Artist Includes:

MIDI & Audio Data aquistion
DMX Fixture Profile Libraries
Pixel array effects generator
Local & Remote Operator Screens
Real-time calendar event Triggers
Audio & Video Event Synch

- Output connection -

The ShowCad USB-DMX is fitted with the standard DMX 5 Pin XLR connector.

The USB interface comes pre-configured for the operational requirements of the ShowCad Software. The interface is also interoperable with all of the JESE DMX-TRI functions and Software.
